HomeBoring / Drilling MachinesDirectional DrillsGeismar, LA

Ditch Witch JT520 Boring / Drilling Machines For Sale in Geismar, LA

View Larger


DESCRIPTION

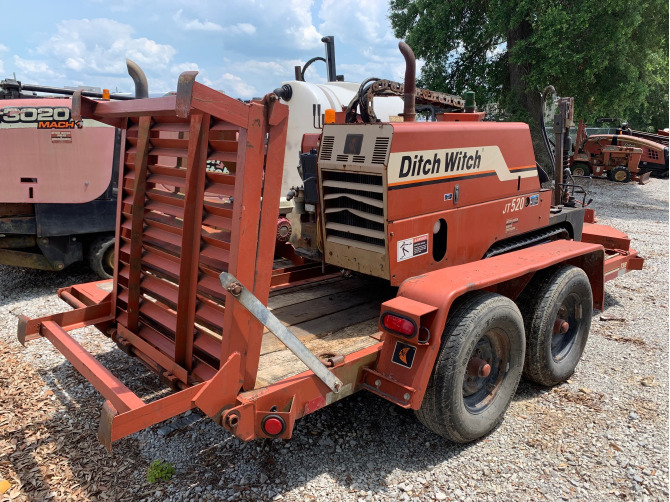

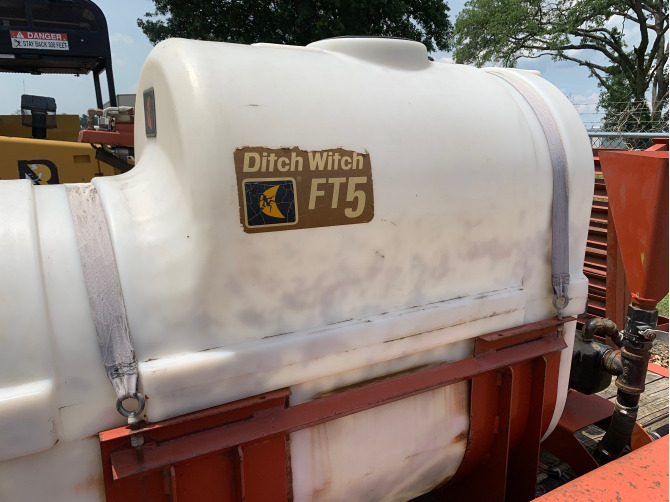

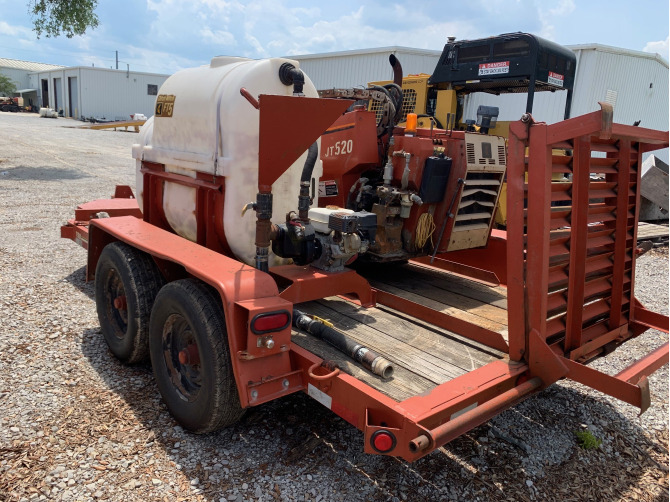

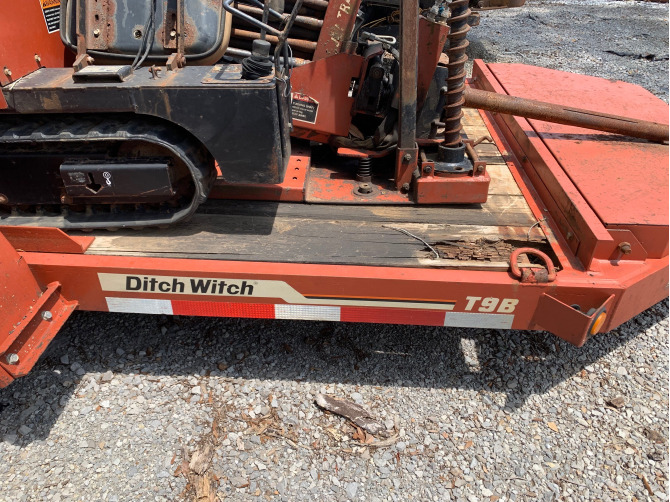

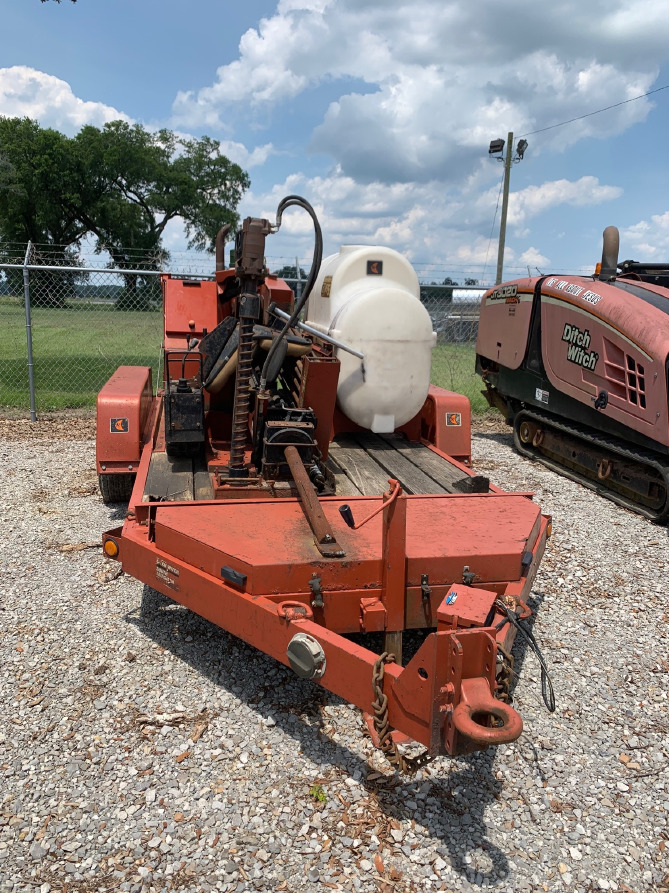

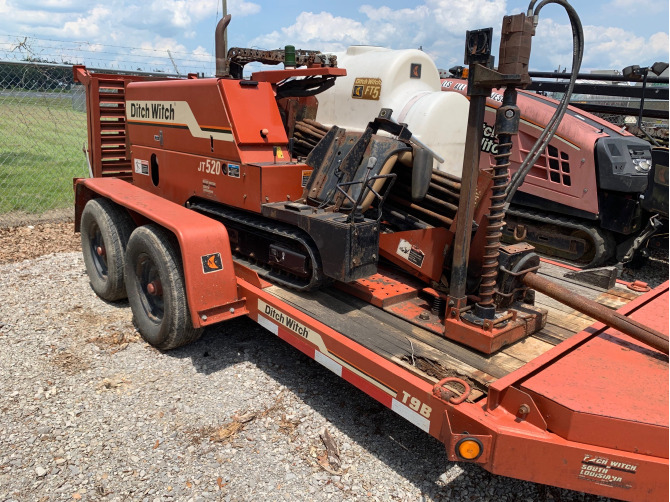

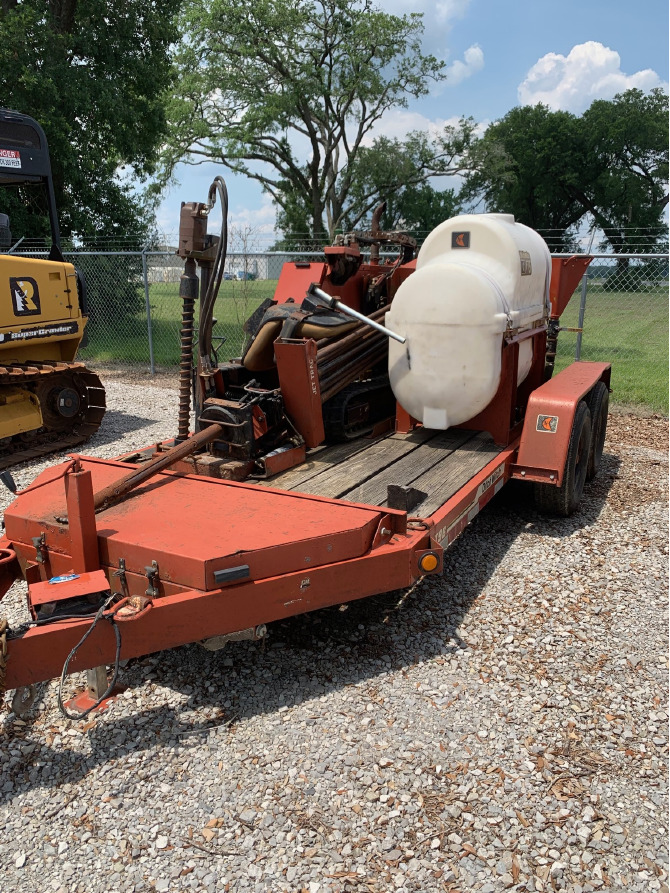

Used '04 JT520 with drill pipe, drillhead, FT5 mixer and T9B trailer. Machine has low hours on it (1312). Sold as a package only. . The JT520 is a compact directional drilling system ideal for shallow-product installations in urban and residential areas. Designed for multiple installations per day, the JT520 is capable of pulling two-inch (50 mm) or smaller diameter conduit up to 150 feet (46 m) depending on soil solutions. The system can be transported with a ton pickup truck and the unit fits through a 36-inch (91 cm) yard gate.KEY FEATURES:-Power:28.5 gross hp (21.25 kW) diesel engine delivers high spindle speed of up to 195 rpm and peak torque of 500 ft/lb (678 N/m). Maximum thrust is 4500 pounds (20 kN) with 5000 pounds (22.2 kN) of pullback. -Productivity and Performance*Thrust/rotation and fluid/auxiliary functions can all be run simultaneously without one function robbing power from the others. *Flat-style pipe wrench system breaks joints without damaging drill pipe. *Carries 150 feet (46 m) of UFE drill pipe with a 70 foot (21.3 m) bend radius allowing shallow installations without exceeding pipe capabilities. *Powerful single-auger design decreases amount of time needed to set up machine. *Single-handle control operates both thrust/pullback and rotation with variable speed for all functions. -Operator Efficiency:*Foot-controlled pipe lubricator speeds operation. *Adjustable drill frame set-up angle from 11-18 degrees meets varying jobsite requirements. *Drilling operator can single-handedly manage the 16 pound (7.25 kg) drill pipe. *Integral ground drive allows one person to load and unload the drilling unit.

PRICE: $15,000

SPECIFICATIONS

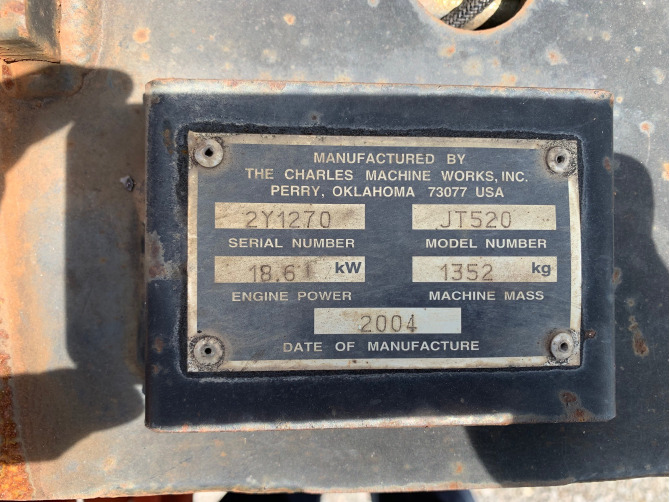

  • New/Used:Used
  • Make:Ditch Witch
  • Model:JT520
  • Category:Boring / Drilling Machines
  • Sub Category:Directional Drills

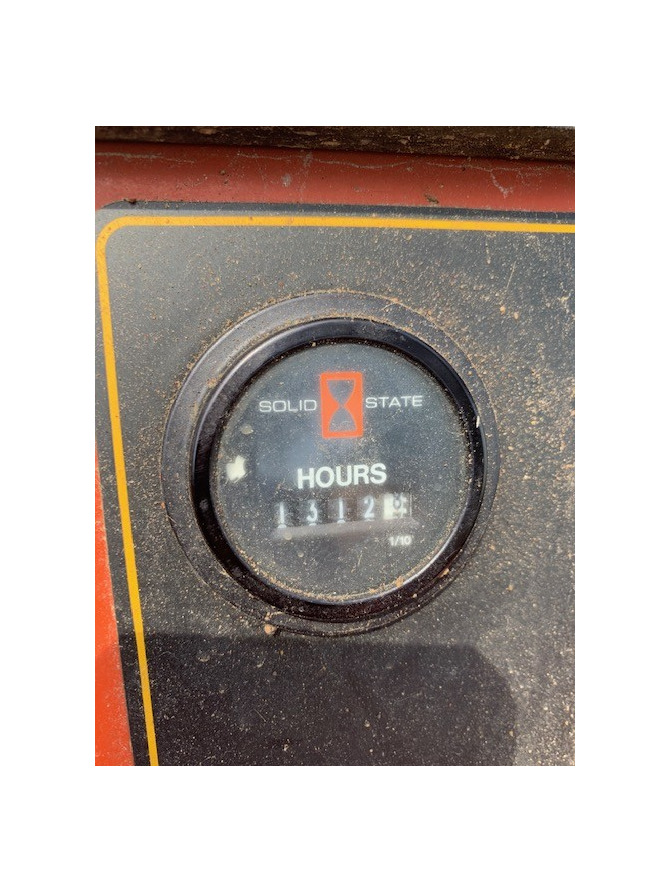

  • Hours:1312
  • Engine Displacement:68.6 ci
  • Travel Speed Forward High:3,000 rpm
  • Engine Make:Kubota
  • Cylinders:3
  • Price:$15,000

  • Ditch Witch Financial Services
SELLER INFORMATION

    Ditch Witch of South Louisiana

  • 36202 Highway 30
    Geismar, LA
    70734 (Map)
  • Call for Appointment:
    (225) 744-7334
  • Visit Dealer Website
  • Equipment Location:


    36202 Highway 30
    Geismar, LA
    70734 (Map)
